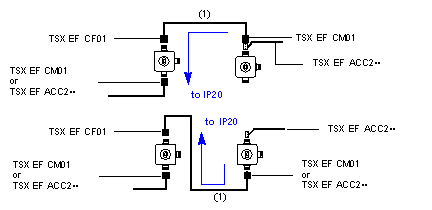

The following diagrams outline the connection principles for FipioIP67TXS EF ACC2•••/•••• cables.

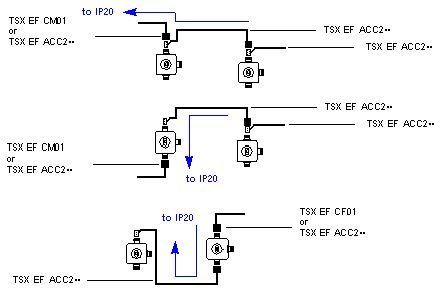

The following diagrams outline the connection principle for a user cable (1).
Fipio
Field bus used to connect sensor or actuator type devices.
IP67
Family of Schneider Automation hardware products consisting of sealed I/O modules which connect to the Fipio field bus, used to produce automated systems with distributed I/Os.
