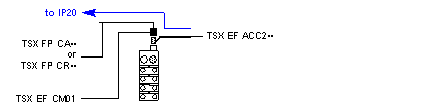

The following diagram outlines the connection principle for an IP67 module.

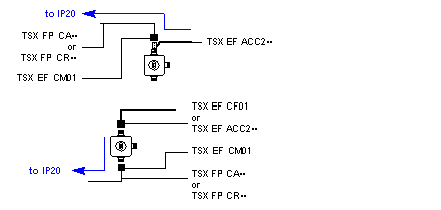

The following diagrams outline the connection principles for a TSX EF ACC 99 branch box.
IP67
Family of Schneider Automation hardware products consisting of sealed I/O modules which connect to the Fipio field bus, used to produce automated systems with distributed I/Os.
