Link between the Fipio IP67 discrete I/O modules and the TSX EF ACC99 branch box

(Original Document)

Connection

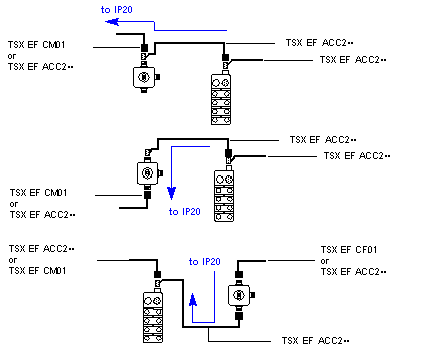

The following diagrams outline the connection principles for TXS EF ACC2•••/•••• cables.

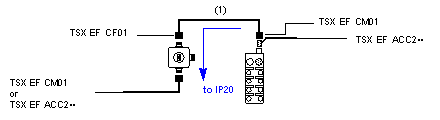

The following diagram outlines the connection principle with a user cable (1).

Fipio

Field bus used to connect sensor or actuator type devices.

IP67

Family of Schneider Automation hardware products consisting of sealed I/O modules which connect to the Fipio field bus, used to produce automated systems with distributed I/Os.
