Electrical characteristics
|
|
|
(Original Document)
|
|
Electrical characteristics
|
|
|
(Original Document)
|
|
TSX EEF 08D2
|
||
|---|---|---|
|
Number of channels
|
8 inputs
|
|
|
IEC 1131-2 conformity
|
Yes, type 2
|
|
|
2-wire and 3-wire ddp compatibility
|
Yes
|
|
|
Nominal values (channels)
|
Voltage
|
24 VDC (positive logic)
|
|
Current
|
7 mA
|
|
|
Sensor supply (including ripple)
|
19.2 to 30 VDC
|
|
|
Max/min input values
|
Voltage at 0
|
< 5 V
|
|
Voltage at 1
|
> 11 V
|
|
|
Current at 0
|
< 2 mA at 11 V
|
|
|
Current at 1
|
> 6 mA at 11 V
|
|
|

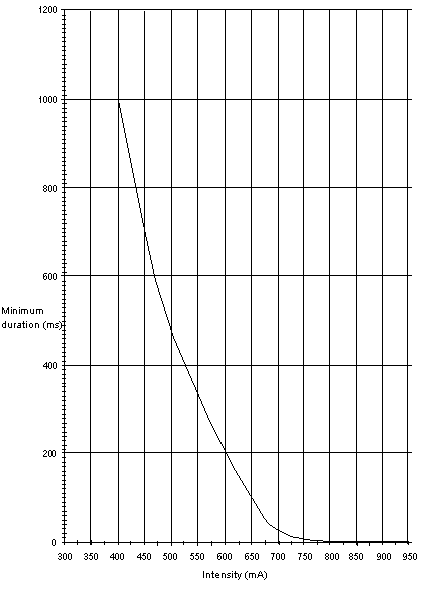

Built-in protection against short-circuits
|
350 mA per 4 channel group.
Display for 8 channels: SF1
|
|
|
Standard response time
|
0 to 1
|
3.5 ms
|
|
1 to 0
|
3.5 ms
|
|
|
Sensor power supply surveillance
|
between 14 and 18 Volts
|
|
|
Isolation
|
Between channels
|
no
|
|
Between bus and internal logic
|
500 VAC
|
|
|
Module power consumption
|
80 mA with 5 inputs connected to 2 wire sensors (plus 10 mA per sensor input connected to each additional 2 wire sensor and plus 10 mA per 3 wire sensor used)
|
|
