Connection
Each of the inputs of the TSX EEF 08D2 module uses an M12 connector (one input per connector).

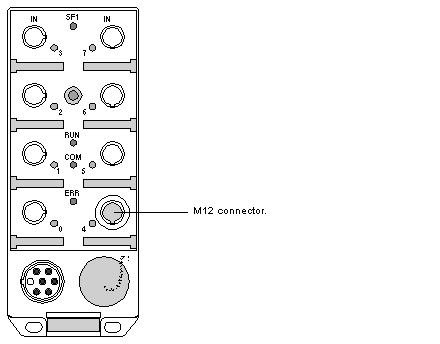

The following drawing shows the M12 connector.
The following table describes the function of each of the contacts of the M12 connector.
1
24 VDC.
2
nc.
3
0 VDC.
4
Sensor input.
5
Ground.
The following diagrams show the connections to the M12 connector.
Mechanical contacts:
2-wire DDP:
3-wire DDP:
Label

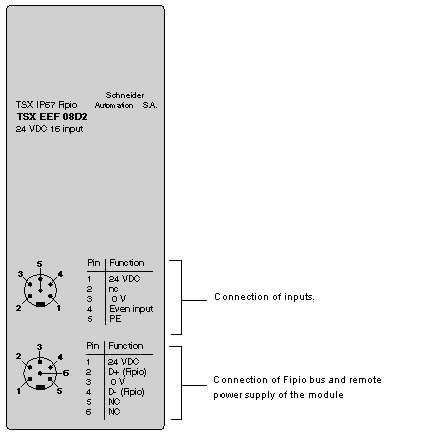

The following drawing shows the label on the rear of the TSX EEF 08D2 module.
