Interpretation of LEDs of TSX EEF 08D2 input module
(Original Document)
About us
Operation
The following table describes how the LEDs of a
TSX EEF 08D2
module work.
LED
Function
Description

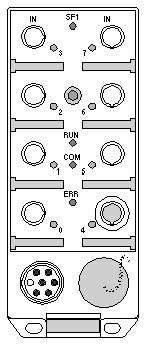

Illustration
0 to 7
State of inputs: inputs connected.
Green LED, the LED shows the state of the connected sensor.
SF1
Power supply fault or overload.
Red LED, (on in the event of an error).
