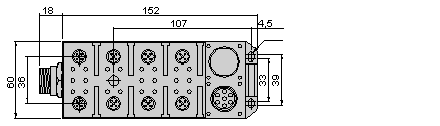

The following drawing shows the horizontal dimensions of an IP67 module.

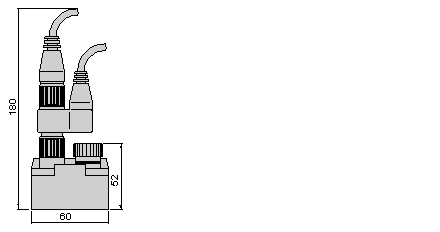

The following drawing shows the vertical dimensions of an IP67 module
IP67
Family of Schneider Automation hardware products consisting of sealed I/O modules which connect to the Fipio field bus, used to produce automated systems with distributed I/Os.
