Installation principles

Introduction

The are designed to be installed directly on the machine frames.

The input or output modules can be mounted side-by-side, whilst maintaining a distance of 87 mm between the axes of consecutive modules.

Installation

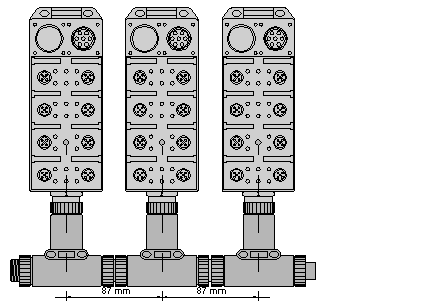

The use of a T connection for the output power supplies requires a minimum distance of 87 mm between two modules. This minimum distance is recommended in order to avoid mechanical stresses being exerted on the compound-filled cables.

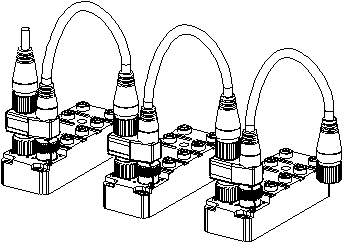

The installation of the M12 connectors for the connection of sensors and preactuators is carried out as follows:

the length of the TSX EF ACC 2•••/•••• cables is that of the cable excluding connector,
the maximum recommended distance between modules is the length of the TSX EF ACC 2•••/•••• cables less 4 cm per bending radius at the M23 connectors (input and output of modules).

The following table shows the lengths available in IP67 cables.

Reference	Length of cable
TSX EF ACC 2002	0.2 m (-0 / +3 cm)
TSX EF ACC 2010	1 m (-0 / +3 cm)
TSX EF ACC 2030	3 m (-0 / +6 cm)
TSX EF ACC 2070	7 m (-0 / +6 cm)
TSX EF ACC 20120	12 m (-0 / +6 cm)
TSX EF ACC 20250	25 m (-0 / +6 cm)
