Output Power Supplies
(Original Document)
About us
Introduction
Each module has a separate power supply for each group of 4 outputs.
Each of these power supplies is viewed using a module LED:
The connector used is a 7/8" male connector with the following pin configuration:
The following table describes the various contacts of the 7/8" male connector.
Number
Description
1
+24 VDC US1 power supply.
2
+24 VDC US2 power supply.
3
Ground.
4
0 VDC US1 power supply.
5
0 VDC US2 power supply.
NOTE: A female connector with the reference number TSX EF CF 03 can be used as a power supply cable.
Linking Several Modules
When several modules are to be linked, a T connection can be used to provide a power supply of 24 VDC to several modules.
This T connection is available under the reference number TSX EF CT 03.

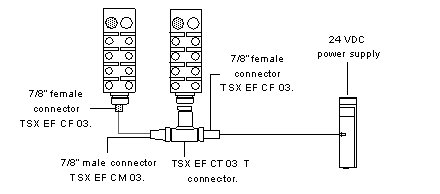

It is used in the following configuration:

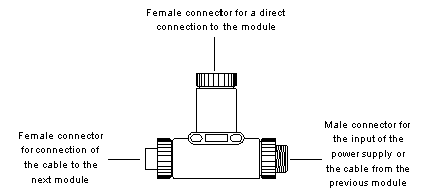

The following drawing shows the T connection TSX EF CT 03.
The T connector ensures the electrical continuity of the two power supplies with all links being point to point.

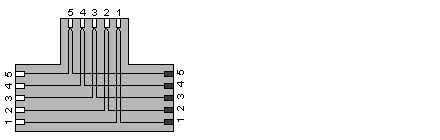

The following drawing shows the pin assignment for the T connection TSX EF CT 03.
The following table describes the various contacts of the T connector.
Number
Description
1
+24 VDC US1 power supply.
2
+24 VDC US2 power supply.
3
Ground.
4
0 VDC US1 power supply.
5
0 VDC US2 power supply.
Technical Specifications
These connectors and the T connector comply with the IP67 Protection rating and are compatible with a 12 mm cable with 1.5 mm2 wires.
The connection is made by screw terminals and the maximum acceptable intensity is 8  Amperes at each connection point.
