LED Indicators

The BMEAHI0812(H) and BMEAHO0412(C) HART eX80 analog I/O modules include LEDs that indicate the operating status of the module:

• module status:

  • RUN (green)

  • ERR (red)

  • I/O (red)

• bus status: BS (red/green)

• analog channel status (green):

  • A0...A7 (for the BMEAHI0812(H) module)

  • A0...A3 (for the BMEAHO0412(C) module)

• HART channel status (red/green):

  • H0...H7 (for the BMEAHI0812(H) module)

  • H0...H3 (for the BMEAHO0412(C) module)

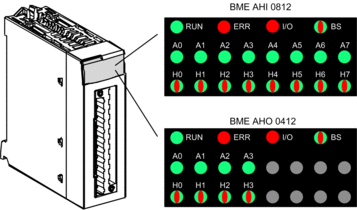

Illustration

The modules have several LEDs that indicate module operating status:
