Connection
Each group of two inputs or two outputs of the TSX EMF 16DT2 module uses an M12 connector (two inputs or outputs per connector).
The following drawing shows the M12 connector (2 outputs).
The following table describes the function of each of the contacts of the M12 connector (2 outputs).
1
nc.
2
Odd output.
3
0 VDC.
4
Even output.
5
Ground.
The following drawing shows the M12 connector (2 inputs).
The following table describes the function of each of the contacts of the M12 connector (2 inputs).
1
24 VDC.
2
Odd sensor input.
3
0 VDC.
4
Even sensor input.
5
Ground.

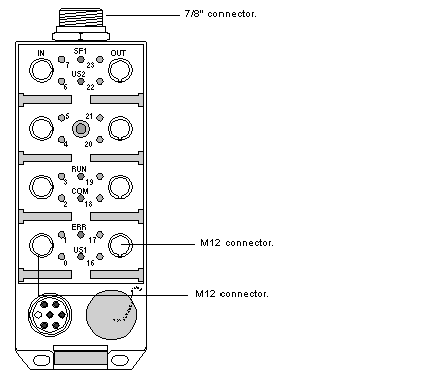

The following drawing shows the 7/8" connector.
The following table describes the various contacts of the 7/8" connector.
1
24 VDC (US1).
2
24 VDC (US2).
3
Ground.
4
0 V (US1).
5
0 V (US2).
For the outputs to operate correctly, the two 24  VDC power supplies (US1 and US2) shall be connected to the TSX EMF 16DT2 module via the output power supply connector.
The following diagrams show the connections to the M12 connector.

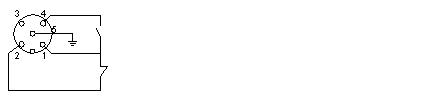

Mechanical contacts:

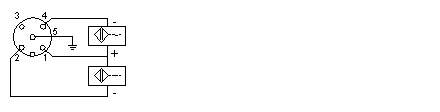

2-wire DDP:

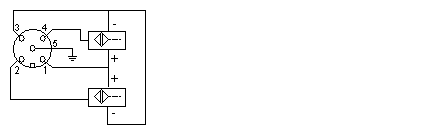

3-wire DDP:

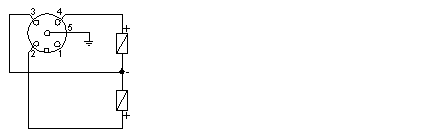

Actuator:
Label

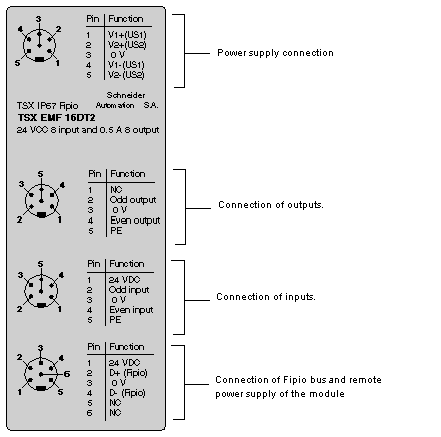

The following drawing shows the label on the rear of the TSX EMF 16DT2 module.
