Connection of module outputs
(Original Document)
About us
Connection
Each output of the TSX ESF 08T22 module uses an M12 connector (one output per connector).
The following drawing shows the M12 connector.
The following table describes the function of each of the contacts of the M12 connector.
1
nc.
2
nc.
3
0 VDC.
4
2 A output.
5
Ground.

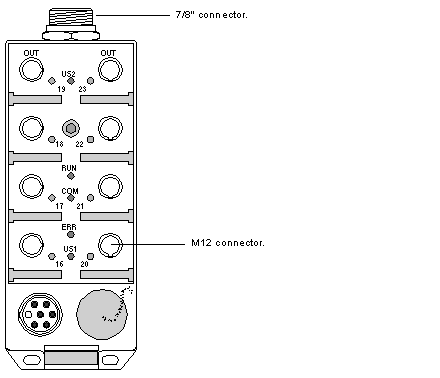

The following drawing shows the 7/8" connector.
The following table describes the various contacts of the 7/8" connector.
1
24 VDC (US1).
2
24 VDC (US2).
3
Ground.
4
0 V (US1).
5
0 V (US2).
For the outputs to operate correctly, the two 24  VDC power supplies (US1 and US2) shall be connected to the TSX ESF 08T22 module via the output power supply connector:
The following diagram shows the connection to the M12 connector.
Actuator:
Label
The following drawing shows the label on the rear of the TSX ESF 08T22 module.
