Connection
Each group of two inputs of the TSX EEF 16D2 module uses an M12 connector (two inputs per connector).

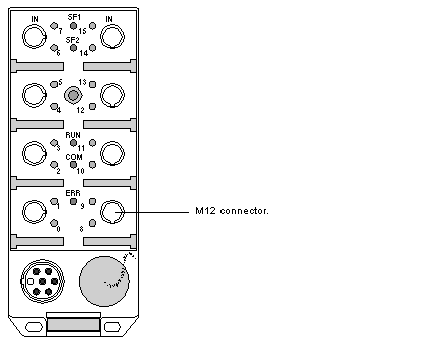

The following drawing shows the M12 connector.
The following table describes the function of each of the contacts of the M12 connector.
1
24VDC.
2
Odd sensor input.
3
0 VDC.
4
Even sensor input.
5
Ground.
The following diagrams show the connections to the M12 connector.
Mechanical contacts:

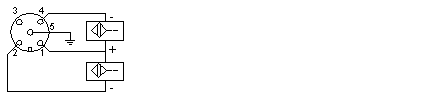

2-wire DDP:

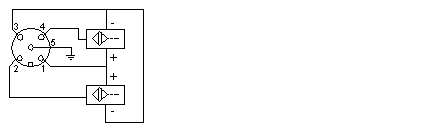

3-wire DDP:
NOTE: If SF1 and SF2 are both on, it is likely that the remote power supply is above the authorized threshold.
Label

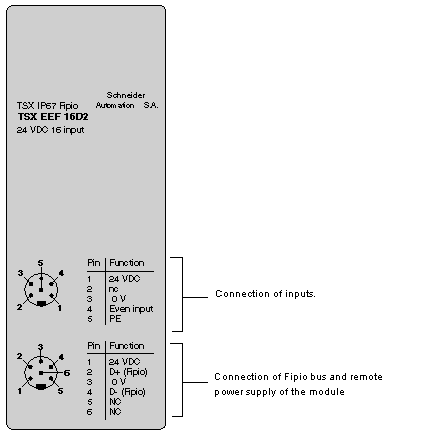

The following drawing shows the label on the rear of the TSX EEF 16D2 module.
