Introduction

M580 PACs have an embedded DIO scanner service to manage distributed equipment on the M580 device network. Some M580 PACs also have an embedded RIO scanner service to manage RIO drops.

To manage RIO drops on the device network, select one of these controllers with Ethernet I/O scanner service (both RIO and DIO scanner service):

  • BMEP582040, BMEP582040H

  • BMEP583040

  • BMEP584040

  • BMEP585040(C), BMEP585040(C)C

  • BMEP586040, BMEP586040C

  • BMEH582040, BMEH582040C

  • BMEH584040, BMEH584040C

  • BMEH586040(C), BMEH586040(C)C

Embedded Ethernet I/O scanner services are configured via the controller IP configuration.

NOTE: Some of this information applies to M580 Hot Standby configurations. For more information, refer to the Modicon M580 Hot Standby System Planning Guide for Frequently Used Architectures.

Controller Characteristics

These tables show the key characteristics of the M580 standalone and Hot Standby controllers. These characteristics represent the maximum values that a specific controller can manage in the M580 PAC system.

NOTE:

  • The values in these tables may not be achieved depending on the I/O density and the number of available backplane slots.

  • The following tables do not include safety controllers. Refer to the Modicon M580 Safety System Planning Guide for the performance characteristics of safety controllers.

Standalone Controllers:

Maximum number of ...

Reference (BMEP58 ...)

1020(H)

2020(H)

2040(H)

3020

3040

4020

4040

5040(C)

6040(C)

discrete I/O channels

1024

2048

2048

3072

3072

4096

4096

5120

6144

analog I/O channels

256

512

512

768

768

1024

1024

1280

1536

expert channels

36

72

72

108

108

144

144

180

216

distributed devices4

64

128

64

128

64

128

64

64

64

Ethernet communication modules (including BMENOC0301/BMENOC0311 modules, but not the controller)

2

2

2

3

3

4(1)

4(1)

6(1)

6(1)

local backplanes (main backplane + extended backplane)

4

4

4

8

8

8

8

8

8

RIO drops (maximum of two backplanes per drop)

(main backplane + extended backplane)

–

–

8(2)

–

16(2)

–

16(3)

31(3)

31(3)

Ethernet ports:

• service

1

1

1

1

1

1

1

1

1

• RIO or distributed equipment

–

–

2

–

2

–

2

2

2

• distributed equipment

2

2

–

2

–

2

–

–

–

– (not available)

H (hardened)

C (coated version)

(1) Only three of these modules can be BMENOC0301/BMENOC0311 modules. All other are BMX Ethernet modules.

(2) Supports BM•CRA312•0 adapter modules.

(3) Supports BM•CRA312•0 and 140CRA31200 adapter modules.

(4) Of these connections: 3 are reserved for local slaves; the remainder are available for scanning distributed equipment.

Hot Standby Controllers:

Maximum number of ...

Reference (BMEH58 ...)

2040(C)

4040(C)

6040(C)

distributed devices

64

64

64

Ethernet communication modules (including BMENOC0301/BMENOC0311 modules, but not the controller)

2

4(1)

6(1)

local backplanes (main backplane + extended backplane)

1

1

1

RIO drops (maximum of two backplanes per drop)

(main backplane + extended backplane)

8(2)

16(3)

31(3)

Ethernet ports:

• service

1

1

1

• RIO or distributed equipment

2

2

2

• distributed equipment

0

0

0

1. Only three of these communication modules can be BMENOC0301/BMENOC0311 modules.

2. Supports BM•CRA312•0 adapter modules.

3. Supports BM•CRA312•0 and 140CRA31200 adapter modules.

RIO Drop Maximum Configuration

The maximum number of channels in an RIO drop depends on the eX80 EIO adapter module:

EIO adapter

Maximum number of Channels

Discrete

Analog

Expert

Sensor bus

BMXCRA31200

128

16

–

–

BMXCRA31210

1024

256

36

2

BMECRA31210

1024

256

36

2
NOTE: The number of available channels could differ from the maximum values shown because the values depend on the controller reference and the other modules in the same drop. More information is given in Modicon X80 I/O Modules.

To configure Quantum RIO drops, refer to the Quantum EIO installation and configuration guide.

Maximum Internal Memory Size

Program and Data Memory (Standalone). This table shows the program and data memory capacity for M580 standalone controllers:

Memory Size

Reference (BMEP58 ...)

1020(H)

2020(H)

2040(H)

3020

3040

4020

4040

5040(C)

6040(C)

internal memory size (KB)

4598

9048

9048

13558

13558

18678

18678

29174

65535(1)

(1) The sum of saved data, unsaved data, and program data is limited to 65535 KB.

Program and Data Memory (Hot Standby). This table shows the program and data memory capacity for M580 Hot Standby controllers:

Memory Size

Reference (BMEH58 ...)

2040(C)

4040(C)

6040(C)

internal memory size (KB)

9462

18934

65536(1)

(1) The sum of saved data, unsaved data, and program data is limited to 65536 KB.

Memory Areas (Standalone). This table shows the maximum memory size per area for M580 standalone controllers:

Maximum Memory Size

Reference (BMEP58 ...)

1020(H)

2020(H)

2040(H)

3020

3040

4020

4040

5040(C)

6040(C)

saved data (KB)(1)

384

768

768

1024

1024

2048

2048

4096

4096

program (KB)

4096

8162

8162

12288

12288

16384

16384

24576

65536(2)

(1) 10 KB are reserved for the system

(2) The sum of saved data, unsaved data, and program data is limited to 65536 KB.

Memory Areas (Hot Standby). This table shows the maximum memory size per area for M580 Hot Standby controllers:

Maximum Memory Size

Reference (BMEH58 ...)

2040(C)

4040(C)

6040(C)

saved data (KB)(1)

768

2048

4096

Hot Standby data exchanged (KB)

768

2048

4096

program (KB)

8162

16384

65536(2)

(1) 10 KB are reserved for the system

(2) The sum of saved data, unsaved data, and program data is limited to 65536 KB.
NOTE: Versions 2.30 and any subsequent supporting version(s) of M580 processor firmware provide a maximum of 64 K words of memory for State RAM. By contrast, the display for firmware versions 2.20 and earlier would appear to provide a maximum of 128 K words; however, the display is incorrect. As a result, if you upgrade controller firmware from version 2.20 or earlier to version 2.30 or any subsequent supporting version(s) for an existing project, the percentage of State RAM used by the application will appear to have doubled. In some cases, the percentage of State RAM used can exceed 100% and the application cannot be re-built. To re-build your application in this case, you will need to perform one or both of the following edits:

  • Increase the amount of State RAM (the total of %M, %MW, %I, %IW), if possible.

  • Re-define some located variables as unlocated (by removing the assigned address), until the total amount of State RAM used (the sum of %M, %MW, %I, %IW) no longer exceeds 100%.

Located Data (Standalone). This table shows the maximum and default size of located data (in KB) for each M580 standalone controller:

Object Types

Address

Reference (BMEP58 ...)

1020(H)

2020(H)

2040(H)

3020

3040

4020

4040

5040(C)

6040(C)

internal bits

%Mi maximum

32634

32634

32634

32634

32634

32634

65280(2)

65280(2)

65280(2)

%Mi default

512

512

512

512

512

512

512

512

512

input/output bits

%Ir.m.c

%Qr.m.c

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

system bits

%Si

128

128

128

128

128

128

128

128

128

internal words

%MWi maximum

32464

32464

32464

65232

65232

65232

64896(3)

64896(3)

64896(3)

%MWi default

1024

1024

1024

2048

2048

2048

2048

2048

2048

(1) Memory size depends on the equipment configuration declared (I/O modules).

(2) 32624 for versions before 2.30.

(3) 65232 for versions before 2.30.

Located Data (Hot Standby). This table shows the maximum and default size of located data (in KB) for each M580 Hot Standby controller:

Object Types

Address

Reference (BMEH58 ...)

2040(C)

4040(C)

6040(C)

internal bits

%Mi maximum

32634

65280(2)

65280(2)

%Mi default

512

512

512

input/output bits

%Ir.m.c

%Qr.m.c

(1)

(1)

(1)

system bits

%Si

128

128

128

internal words

%MWi maximum

32464

64896(3)

64896(3)

%MWi default

1024

1024

2048

(1) Memory size depends on the equipment configuration declared (I/O modules).

(2) 32624 for versions before 2.30.

(3) 65232 for versions before 2.30.

Size of Unlocated Data Memory

This list contains unlocated data types:

  • elementary data type (EDT)

  • derived data type (DDT)

  • derived function block (DFB) and elementary function block (EFB)

The size limit of unlocated data is the global maximum memory size for data minus the size consumed by located data.

Client and Server Requests per Scan

The communication performance of standalone (BMEP58•0•0) and Hot Standby (BMEH58•0•0) controllers is described in terms of the number of client and server requests per scan.

Modbus TCP and EtherNet/IP Server: The table below shows the maximum number of Modbus TCP, EtherNet/IP, or UMAS requests that can be served by the controller Modbus TCP server at each MAST scan.

When the incoming requests exceed these maximums, they are queued in a first-in/first out (FIFO) buffer. The size of the FIFO buffer is according to the selected controller:

Controller

Overall maximum

From USB

Maximum requests sent to IP address of the controller

Maximum requests sent to IP address of comm. modules

Requests per Scan(1)

Request FIFO Size

BMEP581020

8 (16)

32

4

8

16

BME•5820•0

16 (24)

32

4

12

16

BMEP5830•0

24 (32)

32

4

16

16

BME•5840•0

32 (40)

50

4

24

16

BMEP5850•0

40 (48)

50

4

32

16

BME•5860•0

56 (64)(2)

50

4

32

16

(1) This column shows the default limits for the number of requests served per cycle. The limit can be modified through %SW90, between 2 and the number indicated between brackets.

(2) The overall limit for the BME•5860•0 controller is higher than the sum of the limits for the USB, controller, and NOC modules. This is a provision for future evolutions.

The MAST task cycle time may increase by up to 0.5 ms per incoming request. When the communications load is high, you can limit the potential jitter of the MAST time by limiting the number of requests that are processed per cycle in %SW90.

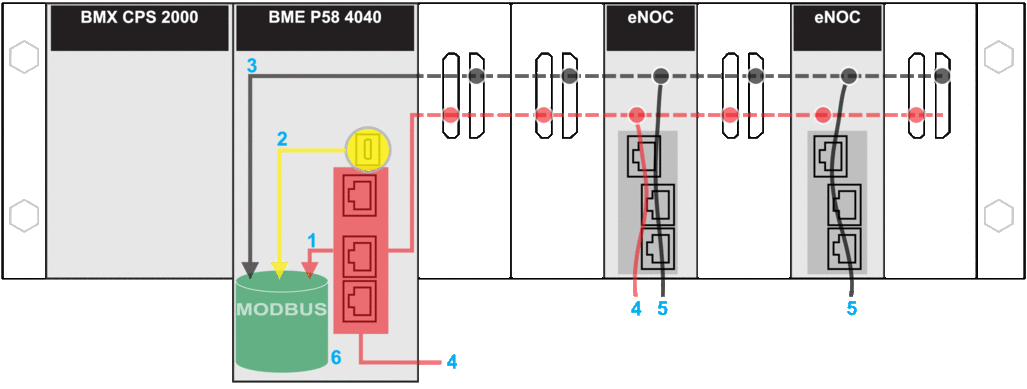

Example: This example local backplane assembly includes a BMEP584040 controller and two BMENOC0301/BMENOC0311 Ethernet communication modules. Therefore, the maximum values in this example apply to the BMEP584040 controller (described above):

red: These requests are sent to the IP address of the controller.

yellow: These requests are from the USB port of the controller.

gray: These requests are sent to the IP address of a communications module (NOC).

1 The maximum number of requests to the IP address of the BMEP584040 controller (24).

2 The maximum number of requests from the USB port of the controller (4). (For example, a PC that runs Control Expert may be connected to the USB port.)

3 The maximum number of requests from all communications modules on the local backplane (16).

4 These requests are sent to the IP address of the BMEP584040 controller from devices that are connected to an Ethernet port on either the controller or a BMENOC0301/BMENOC0311 module.

5 These requests are sent to the IP address of the BMENOC0301/BMENOC0311 from devices that are connected on the Ethernet port of either the BMENOC0301/BMENOC0311 or the controller. (In this case, enable the Ethernet backplane port of the BMENOC0301/BMENOC0311.)

6 The Modbus server can manage in each request the maximum number of requests from the BMEP584040 controller (32). It also holds a maximum of 50 requests in a FIFO buffer.

Number of Connections: This table shows the maximum number of simultaneous Modbus TCP, EtherNet/IP, and UMAS connections for the embedded Ethernet port on these controllers:

Controller

Connections

BMEP581020

32

BME•5820•0

32

BMEP5830•0

48

BME•5840•0

64

BMEP5850•0

64

BME•5860•0

80

When an incoming connection request is accepted, the open connection that has been idle for the longest time is closed.

Modbus TCP and EtherNet/IP Client: This table shows the maximum number (per cycle) of communication EFs that support Modbus TCP and EtherNet/IP clients according to the selected controller:

Controller

EFs per Cycle

BMEP581020

16

BME•5820•0

32

BMEP5830•0

48

BME•5840•0

80

BMEP5850•0

80

BME•5860•0

96

OPC UA Performance

Each M580 PAC can support:

  • Up to 64 connection in parallel using the UA_Connect function block.

  • For each connection:

    • Up to 256 nodes (simple type) to read.

    • Up to 128 nodes (simple type) to write.

The following table presents the limits on the number of connections (sessions) and subscriptions supported by each M580 PAC:

Controller

Maximum Connections (Sessions)

Maximum Subscriptions

BMEP5810•0

4

8

BMEP5820•0

8

16

BMEP5830•0

16

32

BMEP5840•0

32

64

BMEP5850•0

48

96

BMEP5860•0

64

128

BMEH5820•0

32

64

BMEH5840•0

48

96

BMEH5860•0

64

128

If these limits are exceeded, the OPC UA client detects the following errors:

  • E_MaxConnectionsReached (ID 16#B000_0509) in the UA_Connect function block, and

  • E_MaxSubscriptionsReached (ID 16#B000_0501) in the UA_SuscriptionCreate function block.

Application Code Execution Performance

This table shows the performance of the application code for each M580 standalone (BMEP58 ...) and Hot Standby (BMEH58...) controller:



Reference BMEP58 .../BMEH58 ...

1020(H)

2020(H)

2040(H)

3020

3040

4020

4040(C)

5040(C)

6040(C)

boolean application execution (Kinst/ms(1))

10

10

10

20

20

40

40

50

50

typical execution (Kinst/ms(1))

7.5

7.5

7.5

15

15

30

30

40

40

(1)

  • Kist/ms: 1,024 instructions per millisecond

  • A typical execution holds 65% boolean instructions + 35% fixed arithmetic.
