Sample Network

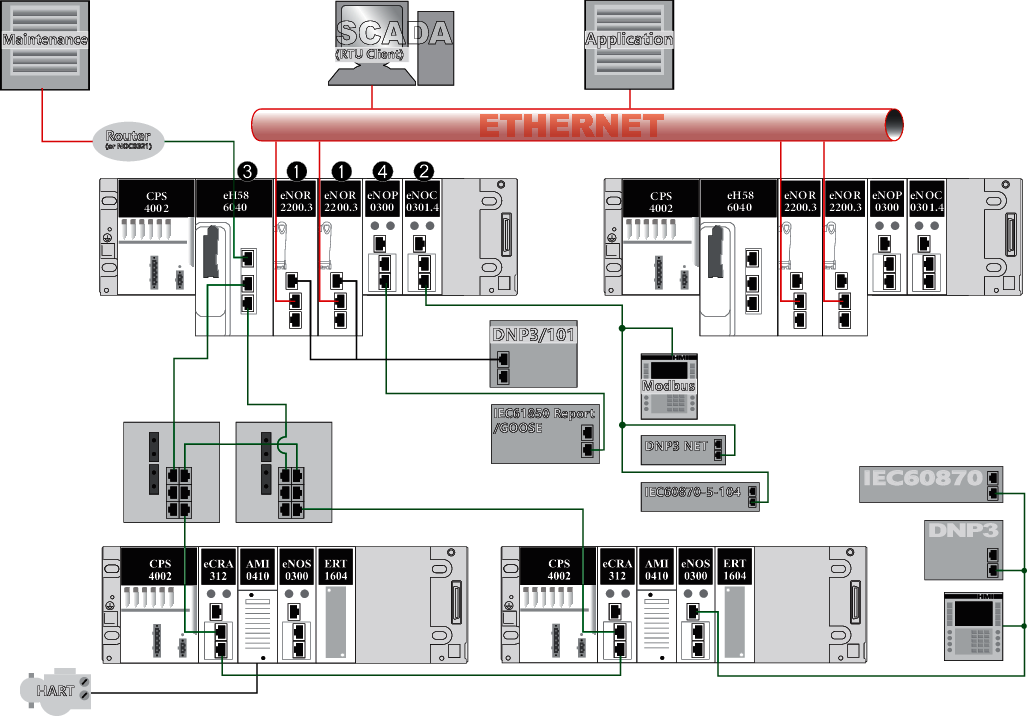

This sample isolated standalone network includes BMENOR2200H module on local racks. The BMENOR2200H module provides two different isolated subnets for control network (red) and backplane network (green).

Legend:

1 A BMENOR2200H module connects the upstream equipment (for example, the SCADA) via control port and connects the local rack to other ethernet devices (RTU devices, HMI) via the Ethernet backplane port or serial port.

2 BMENOC0301 modules on the local racks connect distributed equipment (RTU devices, Modbus devices, HMI).

3 Network access to controller for Engineering/Maintenance application (Control Expert, Firmware upgrade tool etc.)

4 BMENOP0300 modules on the local racks connect IEC61850 devices (Server or Client).
